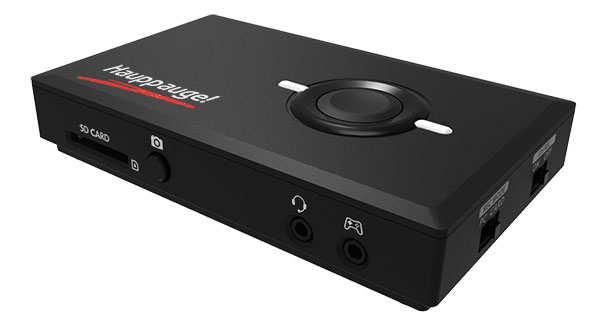

HD PVR Pro 60 model 1684

• Record or stream PC connected: HDMI In video up to 4K60. Record at 1080p60 using H.264
• Record standalone to an SD card: HDMI In video up to 4K60. Record at 1080p60 using H.264
• Down scale 4K to 1080p60 in hardware inside the Pro 60
• Zero latency 4K pass through
• USB Type C bus powered, for portable operation
• Includes Hauppauge Capture: Record, Trim, Play back and Upload to YouTube.
• Also compatible with Zoom, OBS and other recording and streaming applications

Package Includes

• HD PVR Pro 60 high definition 60fps H.264 personal video recorder, USB 2.0/3.0
• USB Type C to USB Type A cable - 1 meter
• HDMI cable, high speed 4K compatible
• 4-pin 3.5mm to 4-pin 3.5mm game contoller cable - 1 meter
• Hauppauge Capture application (download)
• Quick installation guide

Bundled software applications

Hauppauge Capture recording application, with these features:

• Video capture: record from HDMI at up to 4K/60 using H.264 in 1080p60 HD. Record HDMI video with zero latency pass through
• Video playback: playback your videos to your PC screen, in a window or full screen
• Video trimming: fast 'cuts only' editor allows you to quickly remove video segments without loss in quality
• Video upload: upload videos to YouTube
• New feature! SkipBack: record video in the past! With Skipback, you'll never miss that important video segment

System requirements - PC connected

• Laptop or desktop PC with i3, i5 or i7 (or equivalent) processor
• Microsoft® Windows® 11, 10, 8, Windows 7
• USB 3.0 port port
• Internet connection for software download

System requirements - Standalone

• USB power supply: 5v .9amp or greater
• SD card formatted as FAT32 or exFAT. ExFAT is recommended for long recordings since ExFAT can create one file up to the capacity of the SD card, while Fat32 will segment a recording every 4Gb
• SD cards tested up to 512GB
