HD PVR application and Windows driver

Windows driver for HD PVR

HD PVR driver version 1.7.1.30059

This version is for Windows 8, 7, Windows Vista or Windows XP. It is also for HD PVR users with third party Mac or Linux applications.

Please note: this loads firmware onto HD PVR (it must be run on a Windows PC). The third party Linux or Mac application is still needed.

To install:

Download and unzip the file and run "hcwdriverinstall.exe".  When the Windows driver has been installed, you will see a message Drivers have been successfully installed

Release Notes, version 1.7.1:

• Fixes the TS to MP4 converter problem on Linux/Mac
• Fixes Sony Vegas Load, Play and 2x FPS problem for progressive video
• Fixes intermittent PCR bad value
• Fixes installation issues on Windows XP

File name:hdpvr_1.7.1.30059.zip
Date: March 25, 2012
File size: 4 MB

This driver now supports Windows 7 Media Center. Your HD PVR can now be used in Windows Media Center as a TV recorder for cable TV and satellite set top boxes. Note: the installation for Windows 7 Media Center requires two parts: this driver plus the updates described under the "For Windows Media Center" tab above. First install this driver, then click on the "For Windows Media Center" tab above for instructions.

Notes:

This is a Windows driver only for Windows 8, 7 and Vista (32 and 64-bit versions) plus Windows XP (32-bit only). For the Arcsoft Total Media Extreme application for HD PVR, you need your original CD. Updates to the TME application are available through Arcsoft Connect which can be found in Total Media Extreme (see below "Latest HD PVR application").

This driver fixes A/V sync issues with some Dish Network and FIOS set top boxes. This release also fixes IR receive issues with third party applications. In addition, this release includes changes to fix flash memory corruption problems.

This driver fixes a problem with loss of video sync (which shows up as a "glitch" in the video) when the video source switches from NTSC to PAL or from HD to SD while recording. This problem only occurs when recording from a cable TV or satellite set top box, when the broadcaster changes video formats in the middle of a broadcast. This problem does not affect recordings made from an XBox360 or Playstation3.

This driver also fixes video flicker problem on European Sony Playstation3 and also addresses reliability problems returning from Sleep mode.

This version includes a record format which can be immediately played back on a Sony Playstation3. This is the .M2TS format.

Older HD PVR driver, which might work better with Sony Vegas

HD PVR driver

Latest HD PVR application

HD PVR CD version 3.0A:

Includes Arcsoft TME version 2 and HD PVR driver
Here are some of the latest features and additions to the TME application:

• Windows signed driver for Windows 7.
• Added "full screen" mode to the capture modules.
• Added hardware acceleration support to the capture modules for all Windows platforms.
• Added 5.1 audio playback support to the capture modules.
• Added a checkbox to enable/disable HW acceleration to the capture modules. It's located by the "Show Preview" checkbox.
• Added 5.1 audio playback support to the Theater application.
• Added AHCI support.

3rd Party Applications

HD PVR for the Mac:

Click here for information on HD PVR Capture, which provides HD PVR support for all Apple Macs:
www.hdpvrcapture.com

MythTV for the HD PVR

For Linux users, there is a version of MythTV which supports HD PVR. Please click here to get more information:
http://www.mythtv.org/wiki/index.php/Hauppauge_HD-PVR

Help Guides

HD PVR Gaming Edition QuickInstall Guide

HD PVR Gaming Edition QuickInstall

HD PVR QuickInstall Guide

Tutorial on editing HD PVR recordings with Sony Vegas

Click here to see a tutorial on editing HD PVR recordings with the Sony Vegas Editor
http://www.youtube.com/watch?v=VuL_vc42PZI

HD PVR support for Windows Media Center (beta version)

The HD PVR support for Windows Media Center allows you to use the HD PVR to watch, pause and record high definition TV under Windows 7 Media Center from a cable TV or satellite set top box. It operates in a similar way as other Hauppauge TV tuners for Windows Media Center, but the HD PVR records in high definition using H.264 encoding.

Note: the Media Center support for HD PVR is for Windows 7 only.

Release and installation notes

Click here for the installation and release notes.

Installation package

Click here to download the complete installation package.

Size: 6.6 MB
Date: Oct. 4, 2011

IR blaster setup

Click here see a picture of the Media Center remote control setup.

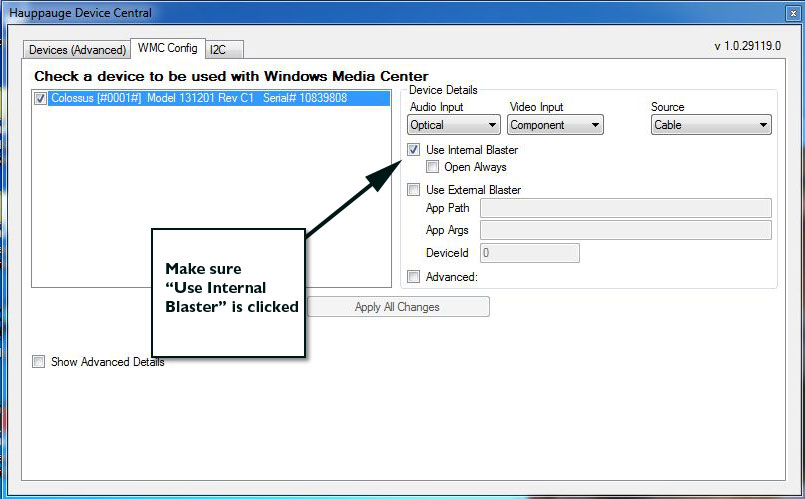

Make sure "Use internal blaster" is selected

Recording high definition video from an Xbox 360

Note: Before connecting your Xbox 360 to the HD PVR or Colossus, connect it to your HD TV set to make the settings. By default, the Xbox 360 will be set to 1080p and HD PVR and Colossus will not work with this resolution. You will need to change your Xbox 360 to 480p, 720p, or 1080i.

Connection diagram

Click for larger image

Watch this YouTube video for Xbox setup instructions, or look below for screen shots

Step by step instructions for the Xbox 360

First, turn on your Xbox 360 and navigate to the main menu.

Navigate to the last menu on the right and go into System Settings.

Go into Console Settings

Go into Display.

Go into the HDTV Settings.

Now select the resolution you want.

The HD PVR will only work with 480p, 720p, and 1080i. If your system is currently set to 1080p. change it to 1080i.

When you select the new resolution, you will be asked if you want to keep the new settings. Please select Yes, keep these settings.

You are now done.

Please turn off on your Xbox 360 and connect it back to your HD PVR or Colossus using component cables.

Recording high definition video from a Playstation3

Note: Before connecting your PS3 to the HD PVR or Colossus, connect it to your HD TV set to make the changes to the PS3 video modes settings. By default, the PS3 will be set to 1080p and HD PVR and Colossus will not work with this resolution. You will need to change your PS3 360 to 480p, 720p, or 1080i.

Connection diagram

Click for larger image

Watch this YouTube video for setup instructions, or look below for screen shots

Step by step instructions

Before connecting your PS3 to the HD-PV or Colossus R, you must set the proper PS3 video output. These are instructions on how to do this.

First, navigate to the Settings column on the PS3 main screen.

Scroll down to Display Settings

Select Video Output Settings.

Note:  You should have your component cables attached to your TV. If not, please take a moment to attach the component cables to the TV.

Select Component/D-terminal. You will then be given a confirmation and after proceeding, you need to change your TV to the component video.

Next you will receive a screen were you will select the desired input resolution.

HDPVR and Colossus can accept up to 1080i so select 1080i. You can also select 480p and 720p.

After selecting 1080i, hit X Enter to go to the next step.

Confirm that you have selected 1080i by clicking X Enter.

Next you will be prompted to set up the Audio Output Settings and then click X Enter.

Here you will select either audio input connector or optical digital (cable sold separately). Chose the way audio will be connected to the HD PVR/Colossus.

You will be shown the audio settings. Click X Enter to continue.

If you select Audio input connector you will be prompted to finalize the setup.

If you have selected optical you must select the compatible formats either PCM 2ch or Dolby 5.1.

After you confirm your audio settings, you may now power down the PS3 and connect it to your HD PVR / Colossus.

When you open the Arcsoft capture module, select YPrPb for you video input and either RCA back (if you selected  audio input connector) or S/PDIF (if you chose digital optical) for your input audio.

Then capture some high definition video!

Connections to a Cable TV or Satellite set top box

Connecting to a set top box with Component video and stereo audio
(click to enlarge diagram)

Connecting to a set top box with Component video and optical audio
(click to enlarge diagram)

HD PVR Gaming Edition and uploading videos to YouTube

To change the upload resolution for Youtube, click the Option button in Showbiz (upper right hand corner) and select Preferences in the dropdown menu. In the Preferences window click on the tab that reads Others. At the bottom of this tab will be the upload resolution to default to when uploading clips (by default set to 240p). View the Preferences page

Troubleshooting the HD PVR

Note: There appear to be a number of HD PVR users who are extending their USB cables because their computer is located a distance from HD PVR. This can potentially cause problems such as "no device detected" or a black screen in TME Capture or bad video recordings. If you are using a long USB cable and are having problems, do an experiment and see if you problem goes away by connecting HD PVR to your PC with the USB cable supplied with HD PVR.

Inputs and outputs and how they are configured

The HDPVR was designed to pass through any input to the component output of the device. So whichever input you choose (composite, svideo or component) will be routed to the component out.
NOTE: if you are using composite or S-Video input, the Component video output will be standard definition even though you are using component cables.

Here are some troubleshooting tips:

• The HD PVR needs to be powered on for pass thru to work.
• After a new installation, composite or S-Video input will be set as the input in TME. (the default was changed to component video in HD PVR driver version 1.6.29207 or higher)
• In order to set HD PVR to the input you want, you must connect the USB cable to your PC (the HD PVR Windows driver must be loaded) and run the TME Capture module. Choose your input.
• After you set the input and you power off the HDPVR, the input you selected will stay until you change it.
• SPDIF is digital audio which will support up to 5.1 and also has a pass through.

Black screen in TME Capture

• First, check that HD PVR is detected by the ArcSoft TME Capture Module. You should see Hauppauge HD PVR listed under Source.
• Next, check input make sure the video source setting is correct for your cabling. Do you see a valid resolution and bit rate for source? Try changing the resolution of the source .. remember 1080p is not supported.
• If using SPDIF as the audio input, there will be no video (black screen) if there is no input from the SPDIF cable (Note: analog audio will not cause loss of video if audio is not present.)
• If you have a Resolution and Bit rate shown, check “enable preview” setting.
• Try to capture. If capture is successful the problem could be a video rendering problem ( video card drivers, hardware acceleration…) If capture fails, there is something wrong with the video or audio input.

Black screen in TME Capture with Video Game Systems

• Most problems here are basic cabling and settings in game consoles. For correct cabling instruction, please refer to: For Xbox360 or For PS3.
• Also, if you choose the wrong video source in Arcosft TMW, you will get a black screen. For example, if you connect Component video but Arcsoft Capture is set for S-Video, you will get a black screen.
• PS3 or Xbox 360: do you have the correct A/V cables? The PS3 and Xbox 360 do not include the A/V Component cables. These need to be purchased separately.
• Check and make sure the Red, Green and Blue cables are connected from the game console to the A/V Input on HD PVR.
• As a test to make sure the cables are correct and are working, connect the game console directly to the HD TV set with the same video game component cables. If you see your game on the HD TV set, then the cables are o.k.
• Check that no HDMI cable is connected to the game console. On the Xbox 360, if the HDMI cable is plugged in, the Xbox turns off the Component video. Once they see the video on their HDTV through the component input verify that 1080p is not selected. Once you confirm this works move the video game component cables back into the HD-PVR component inputs. Now recheck the video and audio source inputs in TME.
• A lot of times we find people who have changed the settings in TME. It might be in composite or svideo, maybe SPDIF audio instead of RCA Back.

Pass through problems

Pass through problems, such as a black screen on your TV set (even though you can record videos), are usually basic cabling and settings in TME. Check your cables!

The best way to proceed is:

• disconnect the game console from whatever it is connected to …. all cables (component, audio, HDMI)
• then start by only connecting the game console to the HDPVR using any cable set
• Run TMe and make sure you can see video on your PC screen
• Once you know HD PVR can preview video and capture, connect the pass through to your HD TV set

If all input and pass through connections are correct and pass through is still not working, check your HD TV for correct input source. If input is correct, try changing input resolution of source to HDPVR.

Video/ Audio Stutter

If you have stutter in your preview window, check that system specs meet the minimum required.

Preview good but stutters in playback on your PC screen: this normally means your PC or graphics card is too slow. check the video card specs.

Random lockups

• Try a different source
• Try a different USB port
• Don't use extra long USB cables
• If you are using a hub, remove it.
• Remove other USB devices if they could hog bandwidth (such as a USB camera)

Prodinfo: get information on your Hauppauge TV tuner

Prodinfo.exe is a program you can run which will extract information about the WinTV product you have installed such as model and serial number, MAC address, revision, and features which can be used to identify the exact model of your product. The driver for the device must be installed in order to run Prodinfo.exe

HCWClear: remove all driver and files that were installed

HCWCLEAR.exe is a program you run to remove all driver and files that were installed with the installation of the WinTV application.
