myMusic Wi-Fi
myMusic Wi-Fi
myMusic Wi-Fi

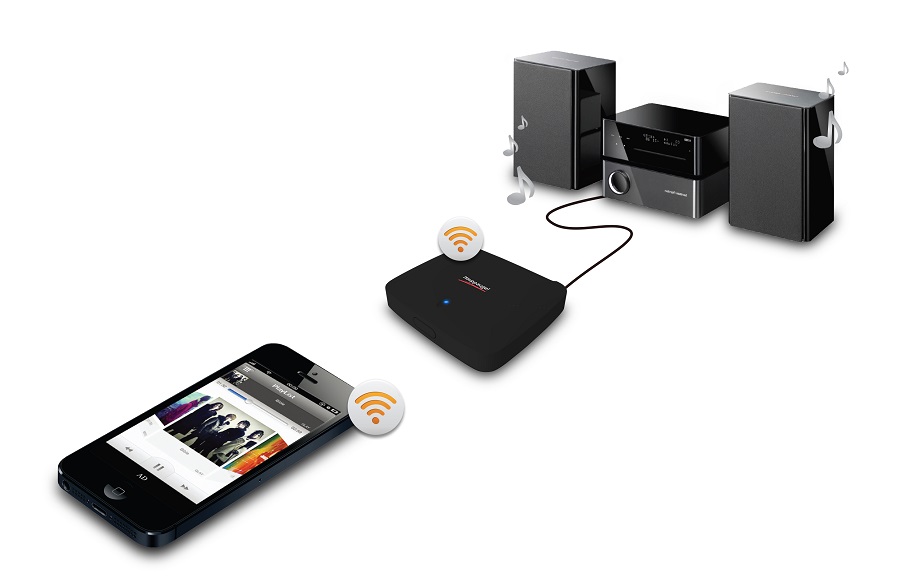

myMusic Wi-Fi: the link between your
iPhone or iPad and your home stereo system
Multiroom Support
All of your iPhone or iPad music,
wirelessly through your stereo system!

myMusic Wi-Fi

Listen to your Apple and Android music in HD quality audio on your home entertainment system via Wi-Fi!

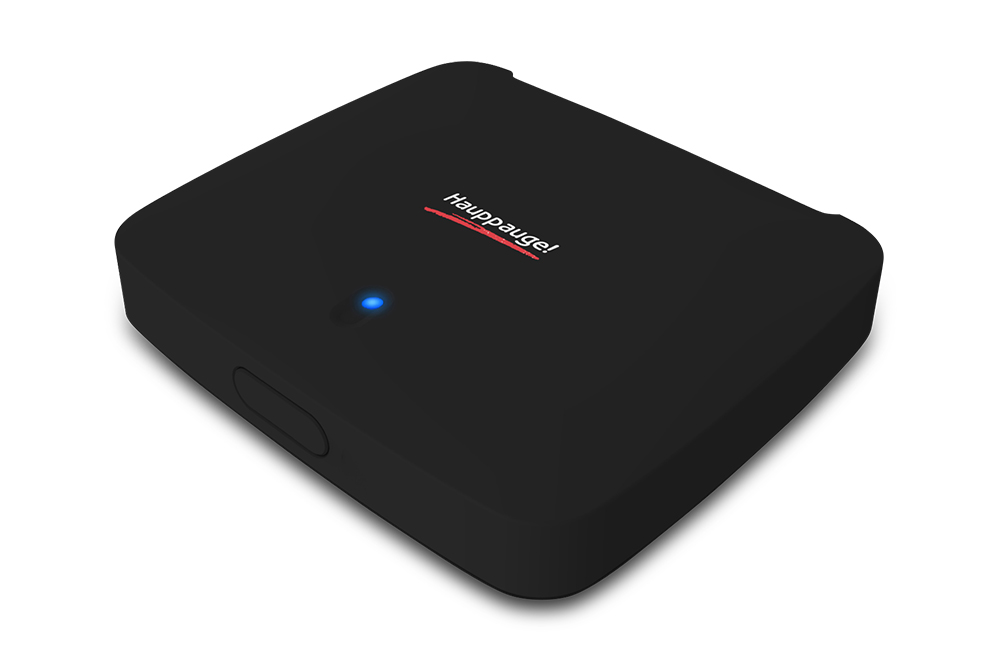

myMusic Wi-Fi is a pocket size device which allows you to listen to all your favourite iPhone, iPad, iPod and Android music albums, audio tracks, radio stations, Spotify, Deezer or Pandora music wirelessly on your home entertainment system.

myMusic Wi-Fi is easy to install. Just plug in the supplied audio cable into your stereo 3.5mm or RCA jack to your home entertainment system. You may also use an Optical S/PDIF connection for HD quality sound (cable not included). Connect the myMusic Wi-Fi to your phone wirelessly via Wifi and you’re ready to start listening to your favourite Albums, tracks, Radio stations, Spotify, Deezer or Pandora music.

The ultra compact design connects directly wirelessly to your Apple and Android device and designed to be used at home. It also supports PCs and MAC that support Wifi.

myMusic Wi-Fi is small enough to sit next to your home entertainment system yet powerful enough to support Airplay and DLNA - giving you the freedom to listen to your Apple and Android music in high quality optical HD audio.

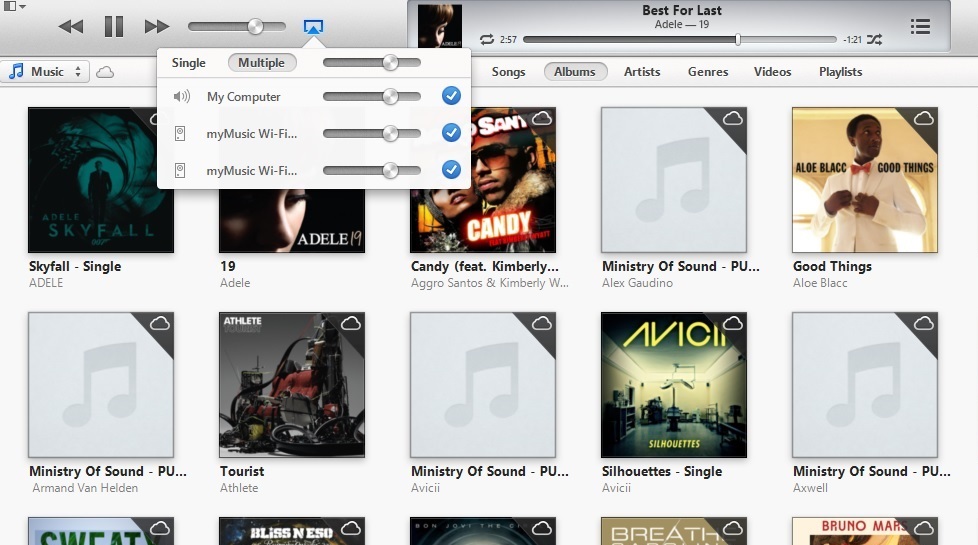

myMusic Wi-Fi multi-room audio support?
myMusic Wi-Fi supports Airplay and has the  ability to play your music library simultaneously across several different speaker systems simultaneously, filling your home with Music using existing your speaker systems or docking stations (Aux required).

myMusic Wi-Fi lets you play all of your favourite iTunes music from your Apple devices over your home’s existing Wi-Fi network in any room of your house as long as you have a speak with a 3.5mm jack or an optical audio input.

Key Features

  • Built-in Wireless capability.
  • Wireless streaming music from your smart device / PC / MAC.
  • Wi-Fi streaming lossless high quality music.
  • Simple setup.
  • DLNA / UPNP compatible.
  • Airplay compatible.
  • Tune Multi-room support.
  • 3.5mm and optical audio output.
  • DLNA / UPNP APP.

myMusic Wi-Fi Specs and Requirements

Technical specifications

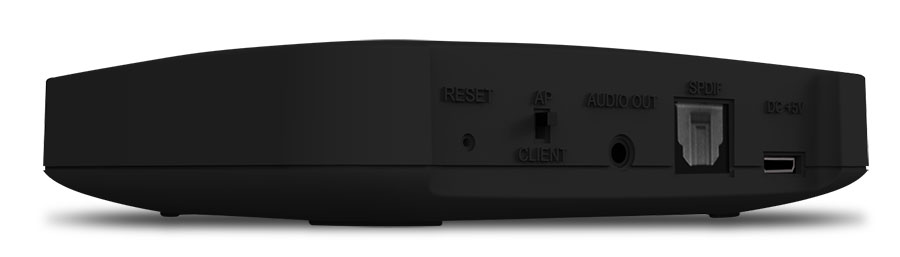

  • Input/Output:
    • Power Button (On/Off).
    • Reset.
    • 3.5mm phone jack.
    • S/PDIF.
    • Micro USB port.
    • Direct Link (AP)/Network Link (Client) Mode switch.
  • Indication LED:
    • Green: On.
    • Red: Off.
  • Power Supply:
    • 5v, 1a.
  • Wifi Standard:
    • IEEE 802.11b/g/n compatible WLAN.
  • Protocol:
    • AirPlay, DLNA 1.5, Digital Media Renderer, UPnP, DHCP.
  • Audio Format:
    • MP3, AAC, WAV, WMA, FLAC, ALAC.
  • Dimensions:
    • 84.2mm x 30mm x 78.5mm.

System Requirements

  • Apple:
    • iOS 5.0 or later
    • iTunes 10 or later
  • Android:
    • Android 4.0.3 or later / 1GB memory
    • Android device with a 1.4GHz dual core CPU (Up to 2 pcs AudioLink for syncing audio)
    • Android device with a 1.2GHz quad core CPU (Up to 4 pcs AudioLink for syncing audio)
  • Windows PC Tool:
    • Microsoft Windows 8, Windows 7 or Windows Vista with latest Service Pack and 1.5GB RAM (4GB recommended)
    • PC CPU with 1.5 GHz (2.5GB recommended)
    • PC support the WiFi Network

My Music Wi-Fi has been tested and confirmed to run on the following Android devices:

  • Samsung S5
  • Samsung S4
  • HTC ONE 801e
  • HTC butterfly
  • HTC Design 816
  • HTC ONE Max
  • HUAWEL P6
  • Samsung S3 i9300
  • Samsung Note1
  • Samsung Note2
  • Samsung Note3
  • Google Nexus 7
  • Sony Z1


myMusic Wi-Fi
myMusic Wi-Fi has SPDIF audio
connections, for the best audio quality!

Model numbers:

model 01524: myMusic Wi-Fi and English manual

Included in the box

  • myMusic Wi-Fi device.
  • 3.5mm phone jack to 3.5mm phone jack cable.
  • Quick start guide.
