HD PVR 2 High Definition Video Recorder for Cable or Satellite TV Set Top Boxes
Record your TV programs in HD from a cable TV, DVR or satellite TV box
Offload your DVR and free up DVR disk space or create a library of your favorite TV programs!
Now with optical audio plus IR blaster to control your cable or satellite set top box
Includes our no delay pass through, so you can watch TV from your cable or satellite box while you record in HD!
Now includes StreamEez, so you can live stream. Create a Twitch, YouTube or Ustream channel with StreamEez!
Includes a built-in Record button, so you can start and stop your recordings without having to be at your PC. Plus with our Personal Logo inserter, you can add your own logo to your recordings and Twitch and Ustream channels.
Some cable and satellite boxes do not allow recording from the HDMI port on the box. The HD PVR 2 model 1512 can record HD video from either HDMI or Component video using the supplied A/V adapter cable. If you have one of these boxes, you will need to use the Component video connectors on the back of your box. Component video connectors are normally Red/Green/Blue connectors and are sometimes marked 'YPrPb'. Please check with your cable TV or satellite TV provider for the availability of Component video connectors on your box.
Both the WinTV and Hauppauge Capture applications can be set for either HDMI or Component video sources.
HD PVR 2 model 1512 Overview
HD PVR 2 model 1512: your personal high definition video recorder!
HD PVR 2 records video at up to 1080p from a DVR or satellite or cable TV set top box or a video game console. HD PVR 2 can record from either HDMI (without HDCP protection) or Component Video at up to 1080p.
You can record TV programs from a DVR and free up space on the DVR for more recordings. Create a library of your favorite TV programs.
Or use the included WinTV v7 application to schedule TV recordings directly from a cable TV or satellite set top box.
Amazing HD audio and video quality
HD PVR 2 contains a studio quality video encoder, and records at resolutions up to 1080P30.
The H.264 format is used by Blu-ray discs and exceeds other video compression standards in quality and disk space consumption, providing a crisp image and amazing digital sound. H.264 uses 1/3 the disk space compared with the popular MPEG-2 format.
And with HD PVR 2’s S/PDIF optical audio input, your audio will be as amazing as the video!
Make your own HD movie library from cable or satellite TV
Offload your cable or satellite DVR box with the HD PVR 2 model 512 in full HD. Create a library of your favorite high definition TV programs by burning up to 2 hours of HD PVR 2 video onto a standard DVD-R disc. The discs created with the included ShowBiz application can be played on Blu-ray disc players.
Record your favorite cable or satellite TV programs in HD. Use the included IR blaster to control the channel changing on your set top box
Connect HD PVR to your satellite or cable TV set top box via the HD component cables (supplied). With the TV scheduler and IR blaster, HD PVR can change the channel on the set top box and record the selected program. Hauppauge’s TV Scheduler provides a easy way to schedule your TV recordings. Create a schedule of weekly or once only recordings, and HD PVR will record them automatically! Find your favorite movie, sports event or show, schedule it and let HD PVR 2 take over!
You can also record your video game play in HD. Upload to YouTube and share with your friends! Stream your videos, too!
Record your best gaming moves without slowing down your PC. The video compression is done inside HD PVR 2 so you can record your PC game play in HD without slowing down your PC. You can also record Xbox One, Xbox 360, PS3, PS4 and Wii U game play. And HD PVR 2’s HD video passthrough means you can record and watch your game play at the same time, with no delay! HD PVR 2 captures videos in a format which is perfect for uploading to YouTube.
HD PVR 2 model 1512 connection diagrams
HD PVR 2 has “no delay passthrough” so you can play your video game while recording. To use the no delay pass through, simply connect HD PVR 2 between your game console and your HD TV set. HDMI output is provided to make it easy to connect to your TV monitor.
For recording HD TV programs from a cable or satellite TV box, HD PVR 2 includes an IR blaster which can change the channels on your set top box. Use the included WinTV application to schedule recordings of your favorite TV programs and the IR blaster will change to the correct channel for the recording.
model 01507: HD PVR 2 with English manual
Included in the box
- HD PVR 2 high definition H.264 personal video recorder, USB 2.0
- 6V 1.6 amp power supply
- USB cable - 9 ft.
- 2 meter HDMI cable to connect to your TV monitor
- 2 meter IR blaster cable
- Component video cable with Hauppauge A/V adapter cable, to connect to your cable or satellite box
- Installation CD-ROM
- Quick installation guide
Note: HD PVR 2 will not record video from HDMI with HDCP copy protection.
Note: HD PVR 2 model 1512 comes supplied with either a green or blue LED record indicator. In all other respects, all versions of the HD PVR 2 model 1512 are the same.
Bundled software applications
- Hauppauge Capture, with these features:
- Video capture for recording HD video
- Trim and combine your videos
- Upload videos to YouTube
- Hauppauge SteamEez software, to stream your game play to Twitch or Ustream
- Hauppauge’s Personal Logo inserter, to burn your logo into your recordings and your video streams
- WinTV v7, with TV Scheduler and IR blaster so you can record TV from a cable or satellite box
HD PVR 2 Specifications and System Requirements
- Hardware encoder
- Studio quality video encoder, with 70 frame GOP size for the best recording quality
H.264 AVCHD high definition video encoder, with record resolution to 1080p30
Recording datarate: from 1 to 13.5 Mbits/sec (CBR) or up to 21Mbits/sec (VBR)
Recording video formats: AVCHD (.TS and .M2TS) plus .MP4
- Studio quality video encoder, with 70 frame GOP size for the best recording quality
- No delay HDMI passthrough:
- HDMI in to HDMI out - up to 1080p60
- Component Video in to HDMI out - up to 1080p60

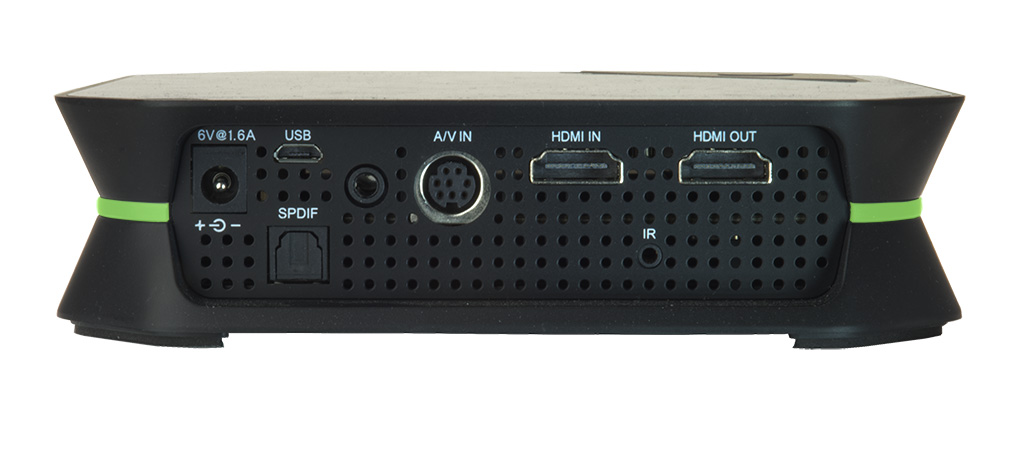

- Input/output connections
- HDMI in, from HDMI sources without HDCP (some cable and satellite boxes)
- Component video in, with stereo audio (sometimes marked 'YPrPb' on cable or satellite boxes)
- S-Video and composite video in, with stereo audio (optional cable not supplied)
- HDMI passthrough
- Size: 6 in wide x 6 in deep x 1.5 in high
- Power: 6V at 1.6 amps
- Weight: .75lb / .34 kg / 12 oz
- Recording formats
- 1080p60p (recorded as 1080p30)
- 1080p50p (recorded as 1080p25)
- Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz multi-core processor
- Microsoft® Windows® 10, 8, 7 or Vista (32 or 64-bit), or Windows XP Service Pack 3
- TV set with HDMI input (optional for use with video pass through)
- 1 GB memory recommended
- Graphics card with 256 MB memory
- Sound card
- 220 MB free hard disk space
- CD-ROM drive (for software installation)
Note: HD PVR 2 will not record video from HDMI with HDCP copy protection. If you are recording from a cable TV or satellite box with HDCP protection, you can record using the Component video.
StreamEez for HD PVR 2
Stream your video gameplay with Ustream and Twitch
StreamEez: stream your video gameplay with Twitch, Ustream and YouTube
File name: streameezsetup_1_0_33105.exe
Date: April 15, 2015
File size: 117 MB
New features in this version
- For Twitch users: add your channel name and pause for a commercial break
- Adds an automatic re-connect mode, to re-establish streaming when your Internet connection is momentarily lost
- Adds streaming support for the HD PVR Rocket
To install this version of StreamEez:
- Click on the download link. You will be given an option to Run or Save the file. Click Save to save the file in your Download folder.
- Run this file. It will install the StreamEez-Pro application plus the Windows driver.
- When finished running the update, you will be ask to restart your PC. Restart your PC
- While the PC is restarting, power cycle your StreamEez device to load the new firmware (remove power from the unit for a few seconds and then plug it back in).
- When your PC has rebooted, double click on the StreamEez-Pro icon.
- Under Source (upper left hand corner), make sure it is set to your Hauppauge device.
- If your cables are connected, you should now be able to stream with Twitch, Ustream or YouTube.
Video on how to use StreamEez
How to setup YouTube streaming with StreamEez

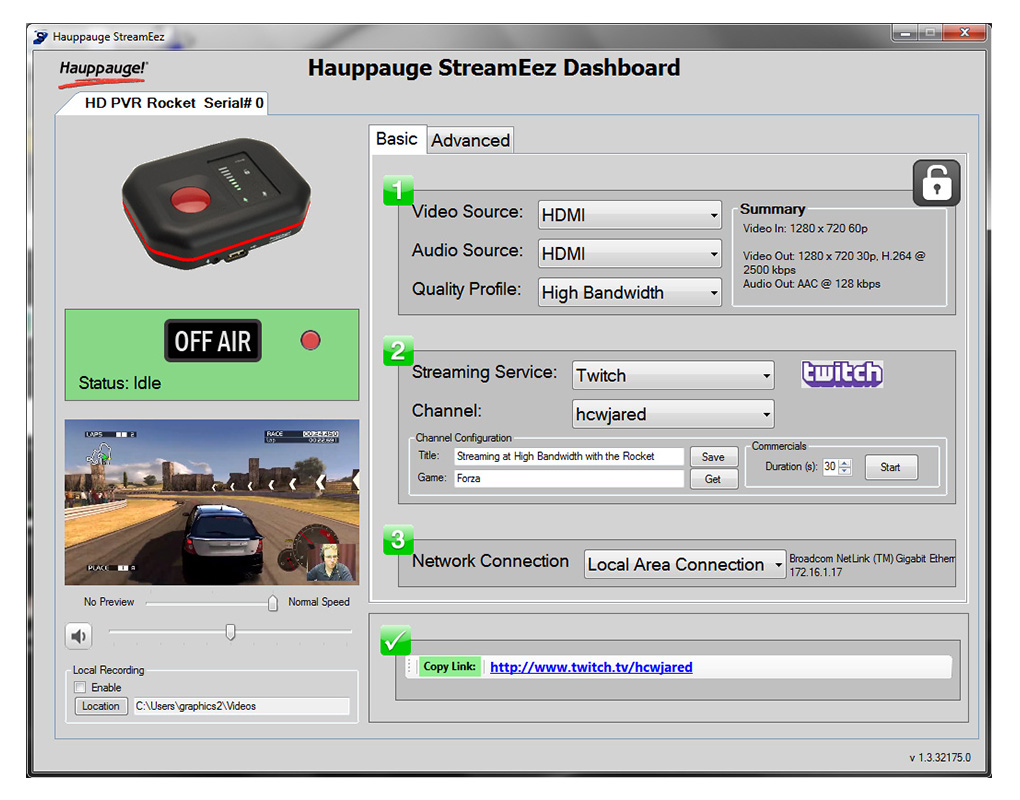

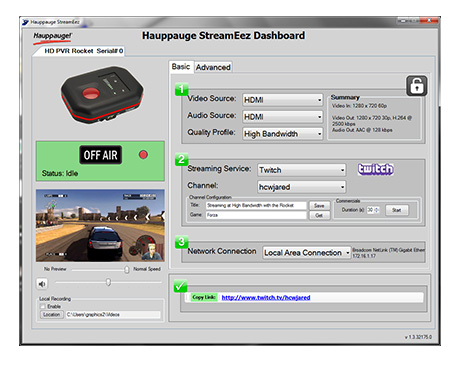

Some tips on using StreamEez
- Step 1
- Before you change any settings, make sure you are Off Air and the Lock button is unlocked (just click on the button to unlock).
- Choose your Video Source. Xbox 360 normally uses HDMI while PS3 normally uses Component.
- Choose your Audio Source. Xbox 360 normally uses HDMI while PS3 normally uses Line.
- In Quality Profile, the default is High Bandwidth. Depending upon the uplink speed of your Internet service, you may need to change to Medium or Low bandwidth. A laggy or jerky stream means your uplink speed is too low and you need to choose a different Quality Profile.
- If you would like to preview your video in StreamEez, make sure the slider under the preview window is set to 'Normal speed'. You should now see your video in the preview window.
- Step 2
- Then choose your Stream Service, either Twitch, YouTube or Ustream. ( You must have an account setup with the stream service you wish to use)
- In Channel, select Login. Enter your Login and Password. You will see a message "Gathering credentials" as we check your user name and password.
- Once your user name and password are confirmed, you will see the URL of your stream in the box "Copy stream link". If you click on the words "Copy stream link", the URL will be copied to the clip board.
- Step 3
- Leave the Network Connection as the default
- To start streaming
- To start streaming, click the red dot next to "Off Air." The indicator should be changed to "On Air" and you will now be streaming live over the Internet!
- Once you are On Air, you cannot change any settings. You need to stop streaming by clicking the green dot next to On Air to stop the stream.
Third Party applications for HD PVR 2
Use HD PVR 2 with a Mac.
Capture4ME is compatible with HD PVR 2. It is an easy-to-use application that focuses on the core goal of capturing video. The Capture4ME app has the ability to trim the beginning or end of a recording, and also an 'Upload to YouTube' function for those that want to share their videos online.
Frequently Asked Questions
Microsoft Windows 8, 8.1, Windows 7 or Vista (32 or 64-bit), or Windows XP with Service Pack 2 or later.
Yes, a PC or laptop is required to use HD PVR 2. The PC is used to both run the HD PVR 2 application plus is the place where HD PVR 2 recordings are stored. HD PVR 2 does not have any internal disk storage. HD PVR 2 connects to a PC or laptop computer through a USB 2.0 port. The HD PVR 2 recordings are stored on the PC's disk drive.
If you want to record your HD videos without a PC, you should use the HD PVR Rocket.
If you have a Mac, there is an application from HDPVRCapture which can be used. Go to http://www.hdpvrcapture.com for more information.
With the new Hauppauge Capture application, you can plug your microphone into the 'mic input' on your PC and mix your game play audio with microphone audio. With Hauppauge Capture, there are seperate volume adjustments for game play and microphone audio.
Here's a tip from an HD PVR 2 user:
"With the Xbox One, to record game commentary I do this: in Kinect settings, use the Kinect mic which forces the party chat to come out of the TV speakers. The Hauppauge game recorder will then pick up the party chat when recording game audio.
In order to record your voice (which won't come through the speakers and be picked up), you need to have a Mic plugged in to your PC and place near your face as you do. Then make sure in Hauppauge Capture you select the mic in the drop down menu and set level.
Then you will get the game chat and the game audio recorded, and you speak to your party via Kinect microphone. Basically, one mic to chat with your party and one mic to record your game commentary."
- 1. Go to the Xbox Guide Menu
- 2. Go along to settings.
- 3. Select Voice.
- 4. Go down to voice output and select 'Play though both'. This will make the audio play out your TV and through your mic at the same time.
Depending on what game you are on, I highly recommend you turn down game volume as well as sometimes voice chat can't be heard because the game volume is too loud. However I guarantee that there will be a way to turn down your audio setting on whatever game you are on. Make sure you make it loud enough to hear, but quiet enough to make the voice chat clear and easy to hear.
- On the PS4, go to Settings: from the main user interface, push up on the DualShock 4 to reach the top-level of the system’s menu, and select the toolbox labelled ‘Settings’
- Enter the System submenu: When the long list of options appears, scroll down to the icon named ‘System’ and select it
- Turn off HDCP encryption: You’ll find another long list in Settings. Scroll down to ‘Enable HDCP’ and ensure that the box to the right of the label is not ticked. It will be enabled by default, so simply click on it to disable the irritating feature. If you have any applications open, the system will ask you to close them, so make sure that you’ve saved your game before completing this last step.
The following is from the Xbox support site
- Restart your Xbox One console:
- Press the Xbox button on the console for ten seconds until the console turns off.
- Touch the Xbox button on the console again to turn it on.
- Try to play the content again.
- If your Xbox One console is in instant-on power mode:
- Go to the Home screen.
- Press the Menu button on your controller and select Settings.
- Go to Power & startup, then Power options.
- Select Power mode and then select Save Energy.
- Turn off the console by holding the Xbox button.
- Turn on the console by pressing the Xbox button, and then try to play the content again.
Problem: Playing premium content on your console establishes an HDCP connection with your television. Some unintended video and sound behavior may occur if you plug in a DVR or home entertainment system while the console is turned on.
To resolve this problem, try the following solutions:
The HDMI output of the HD PVR 2 can only be used on an TV set with HDMI connectors. HDMI TV sets normally display 720p or 1080p video.
If you buy the HD PVR 2 Gaming Edition Plus, it comes with a free copy of Capture for the Mac.
If you have an HD PVR 2 or an HD PVR 2 Gaming Edition, you can buy HDPVRCapture separately. For more information, please go to:
Hauppauge Capture uses any webcam, either HD or standard definition, as long as it has a 'raw' YUV or YUY2 mode. MJPEG and other compressed formats are not used. Your webcam can be 4:3 or 16:9. Popular webcams include the Microsoft Lifecam HD-3000 plus, if you have a laptop, the built-in webcam.
Hauppauge Capture chooses the most suitable video mode supported by your webcam. You can set the size of the video, and the format (4:3 or 16:9) in the Settings menu of Hauppauge Capture.
Windows 8, 7, Vista and Windows XP with service pack 3. Mac support from HDPVRCapture.com
You can record HD PVR 2 video on pretty much any PC. Older, slow, laptop or desktop PCs can be used to record HD PVR 2 video. Preview video on older PCs and laptops might be jerky and laggy but your recordings will be fine.
But when you playback an HD PVR 2 recording on your PC screen, you need a fast CPU and at least 256MB of graphics memory. Here is what we recommend for video playback (minimum):
- Dual core CPU 2.0Ghz or faster
- Graphics with 256MB memory (or greater)
- Sound card
- USB 2.0 Port
Yes. Connect the yellow cable from your console (Nintendo, PS2, Wii or any other game console which has a yellow composite video connector) to the Blue connector on the Hauppauge AV cable. Then connect the red and white audio cables from your Wii to the red and white connectors on the Hauppauge AV cable. Then, in Showbiz or Hauppauge Capture, select Composite under Video input and Line In under Audio input.
Here is a video which shows you how to use the HD PVR 2 with an Nintendo 64: http://www.youtube.com/watch?v=Mb541Ww09jg
You can access the HD PVR 2 in your DirectShow application. Simply build a Directshow graph and add the crossbar, capture and encoder filters. Then connect them all up, and it'll output a transport stream containing H.264.
You can then demultiplex it or do whatever you want to it. And you can use standard Microsoft API like IVideoEncoder to control the bitrate. Here is a link to the Graphedit graph.
We are starting to test our Linux support for the HD PVR 2. If you would like to try this out, please send a note to us at: firstname.lastname@example.org
Yes. WinTV v 7 and WinTV v 7.2 are compatible with all models of the HD PVR 2.
If your satellite or cable box has Component video connections on the back of the receiver (normally Red/Green/Blue or marked YPrPb), then the answer is "yes".
By connecting the Component video output from your high definition cable TV or satellite TV set top box to the Component video inputs of the HD PVR 2, you will be able to record the TV programs coming from your set top box to the hard disk. Component video connections are normally the Red/Green/Blue connectors on the back of a set top box. Sometimes they are also called YPrPb or YCrCb connectors.
The HD PVR 2 model 1512 comes with the cables to connect to your satellite or cable TV set top box.
HD PVR 2 encodes in real time directly to the hard disk in an H.264 format. It records in TS or M2TS file formats, which is a basic H.264 'transport stream'. Many people would like to know if the quality of a TS or M2TS recording is as good as an MP4 recording. The video quality of MP4 and TS files are the same. The primary difference between TS and MP4 files is that TS files are flat while MP4 files have an index at the beginning of the MP4 file. Otherwise, the video bits inside the files are the same and therefore the video quality of TS and MP4 files are the same.
All record file types can be used to burn AVCHD Blu-ray compatible discs but you will need to supply your own disc burning application.
There are two ways of bringing audio into HD PVR 2: through the Line In (RCA) stereo audio jacks on the A/V connector or through the HDMI connector. When bringing audio in through the stereo jacks, audio is recorded as MPEG 1 layer 2 audio. When bringing audio in through the HDMI connector, the audio is also recorded in the MPEG 1 layer 2 format.
DTS audio is currently not supported.
If you have the HD PVR 2 model 1512 or the HD PVR 2 Gaming Edition Plus and are bringing in 5.1 channel audio from either HDMI or optical audio, your recordings will be made with 5.1 channel AC-3 audio.
Can I output files I've recorded with my HD PVR 2 or other content from my PC back to an external TV monitor through the HDMI outputs on the HD PVR 2?
No, the HD PVR 2 itself does not have the ability to play back recorded videos to an external monitor. To playback recorded videos, you will need to connect your laptop or PC to your TV set.
The HDMI video output on HD PVR 2 acts as a pass through for live video streaming from your video source through the HD PVR 2 back to your TV monitor. The power of the HD PVR must remain in the on position in order to pass the video through to the external TV.
Yes. Recordings made with HD PVR 2 are either inTS or MP4 formats, which can be immediately uploaded to YouTube without conversion. Hauppauge Capture records from HD PVR 2 in an H.264 form which is used by YouTube. And the Hauppauge Capture Edit tab allows you to trim your videos very quickly without the need to re-encode.
I'm streaming my gameplay with YouTube, but I cannot get YouTube to record the videos. What am I doing wrong?
YouTube will not record your video streams unless you set a start time and an end time in your streams. If you simply start and stop a YouTube stream, YouTube will not record it.
The current Windows driver for HD PVR 2 does not allow your PC to go into Hibernate or Standby mode when it is either recording or previewing video.
Yes for recording, no for streaming. With the latest version of Hauppauge Capture, you can record your videos with a webcam in your recordings. This is called the 'Facecam' feature in Hauppauge Capture. Facecam allows you to specify the location and size of video from your webcam in your recordings.
This happens if you connected your PS3 using HDMI and now want to use Component video so you can record with HD PVR 2.
To fix, you need to reset the video settings on your PS3. To do this:
- Make sure you have the HDMI cable disconnected on your PS3
- Then push the PS3 power button on the front of the PS3. You should see the light go Red. This means your PS3 is turned off.
- Then hold down the PS3's power button until you hear two beeps (one beep, then about 5 seconds and a second beep).
Your PS3 should now be set to Component video out and you should see video in the preview window in Hauppauge Capture.
Most of the time this is caused by either one of the Component video connectors is not connected. For example, if the Red connector is not connected correctly, your video picture will look green.
Also try updating to the latest drivers supplied by your graphics card manufacturer.
I see a change in brightness every few seconds in Hauppauge Capture and Showbiz while recording, streaming or playing back my video recordings. But my recordings are fine. What is going on?
If you are running an AMD graphics card in the PC which the HD PVR 2 is connected to, you may experience a slight change in brightness every few seconds while in the preview or edit screens. This is due to an issue with hardware acceleration that we have seen in some AMD drivers. This shift does not affect recordings and typically can be eliminated by either changing drivers for the graphics card or by disabling Hardware acceleration.
This is caused by either a slow processor in your laptop or desktop PC, or the display adapter is having a problem. Make sure your video card meets the minimum requirements. Also try updating to the latest drivers supplied by the manufacturer.
In September 2012, there was a problem with the ATI graphics driver which would cause jerky video or freezing of the video screen. This should be fixed with an update from ATI on their graphics drivers.
Some set top boxes will disable or turn off the component output if the HDMI or DVI output is being used. Check to see how you have your Television connected to your set top box. You might need to disconnect the HDMI connector on your set top box when you want to record TV programs.
In order for the audio pass through to operate, you need to configure the Audio settings in the Hauppauge Capture application. Click on the Capture tab. In the Audio input section, choose your audio source from the drop down menu ( RCA, HDMI ). Once configured, the HD PVR 2 will retain these settings. Note: the HD PVR 2 must be powered on for the pass through to operate.
Increasing the recording bitrate will eliminate motion artifacts in your recordings. In Haupauge Capture, in the Capture tab make sure Variable is selected. Than start with Quality set to 11 Mbits/sec. This should give you very good quality. You can continue to increase the Quality up to a maximum of 14 Mbists/sec.
You can experiment with other settings, but in our experience, these are good for uploading to YouTube.
- Video record resolutions are 1080p30, 720p60, 540p60, 480p60 and a number of downscale variants of these formats.
- You can record at datarates from 1Mbs to 13.5Mbs. If you choose Variable, the maximum recording datarate is about 1.5 times the selected rate. As an example, if you have Variable selected and set the Quality to 14Mbits/sec, the maximum rate will be about 21 Mbits/sec.
Hauppauge Capture records in a TS file or M2TS file directly. TS is also called 'AVCHD' and is the native format for Blu-ray DVD discs. Also, Hauppauge Capture has an Export to MP4 function, which adds an index to the beginning of a TS recording and creates an MP4 file. This usually takes just a few seconds and does not change the video quality of your recording.
Approximately 2 GB per hour at 5Mb/s setting.
Approximately 4 GB per hour at 9Mb/s setting.
Approximately 6 GB per hour at 13.5 Mb/s setting.
No, the HD PVR 2 requires a PC to operate. If you want to record without a PC, you should use the HD PVR Rocket.
If you are using the HD PVR 2, once you have connected your PC to HD PVR 2 and run Hauppauge Capture, you can disconnect the USB cable to your PC and the passthrough will continue to run as long as HD PVR 2 still has power.
It is not recommended to use a longer USB cable other than the 2 meter USB cable provided with the device.
You can burn Blu-ray compatible discs, but a disc burner is not supplied with HD PVR 2.
The power adapter is 6V 1.6 amps.
Check for the presence of "Constant Guard" from Exfinity and uninstall if present then re run the installation for Hauppauge Capture. Once installed you can reinstall Constant Guard.
Device Central is a Windows service which monitors the record button on the HD PVR 2. Sometimes Device Central will close. If so, you can restart it by going to Windows Explorer and looking in ProgramFiles -> Hauppauge -> DeviceCentral and then running the program HCWDCTrayTool.exe
HD PVR 2 can adjust the color settings of both the recordings and the passthrough video.
To adjust the color settings, open Hauppauge Capture and go to the Capture tab. Then click the Advanced button at the bottom and go to Video Proc Amp. Here you will see the color and briteness settings.
